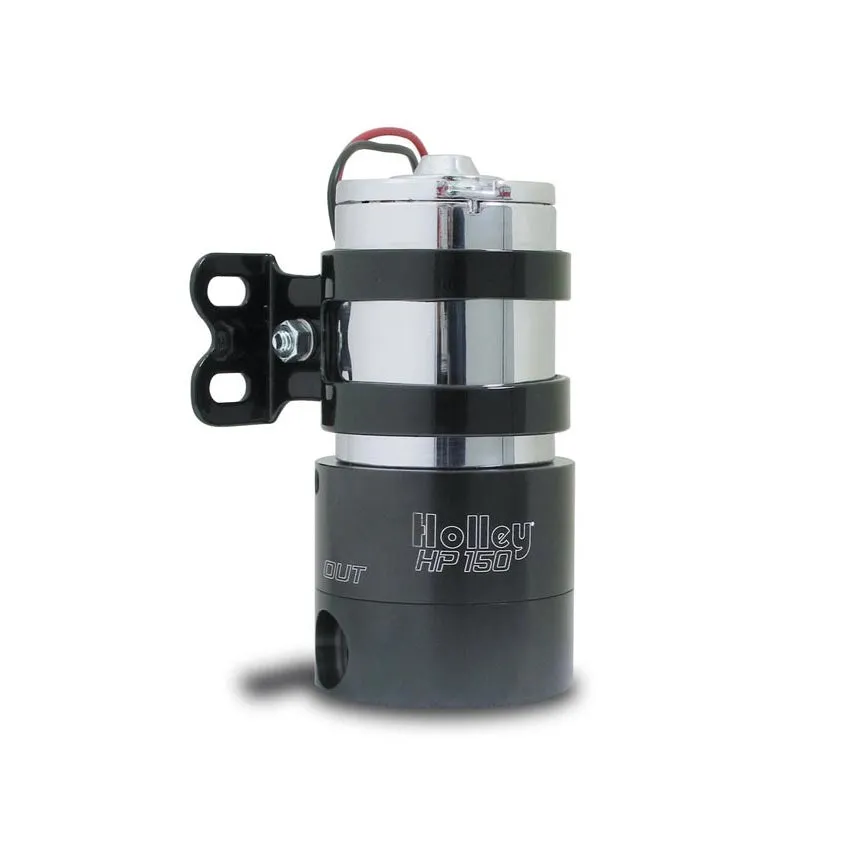

Name: Holley 110 GPH Billet Volumax Electric Fuel Pump
SKU: 425393

150 GPH HP Fuel Pump.

Features:

New shiny finish Aluminum billet pump housing/base Flows 110 GPH (free flow) Pressure is pre-set at 15 PSI Compatible with gasoline and alcohol fuels Powers engines from stock to 900 horsepower Positive displacement gerotor design Includes 3/8" NPT inlet & outlet fittings Must have 3/8" NPT return line to tank Includes 45 micron fuel inlet screen Motor draws only 4-1/2 Amps current 7-1/2 Amp fuse recommended6-1/4" tall Fuel pressure regulator required. Recommend #HLY12-704 Provides constant fuel flow with no pulsation Has externally accessible pressure relief valve NOT designed or recommended for use with fuel injection systems NOT designed or intended for continuous use Service parts are readily available

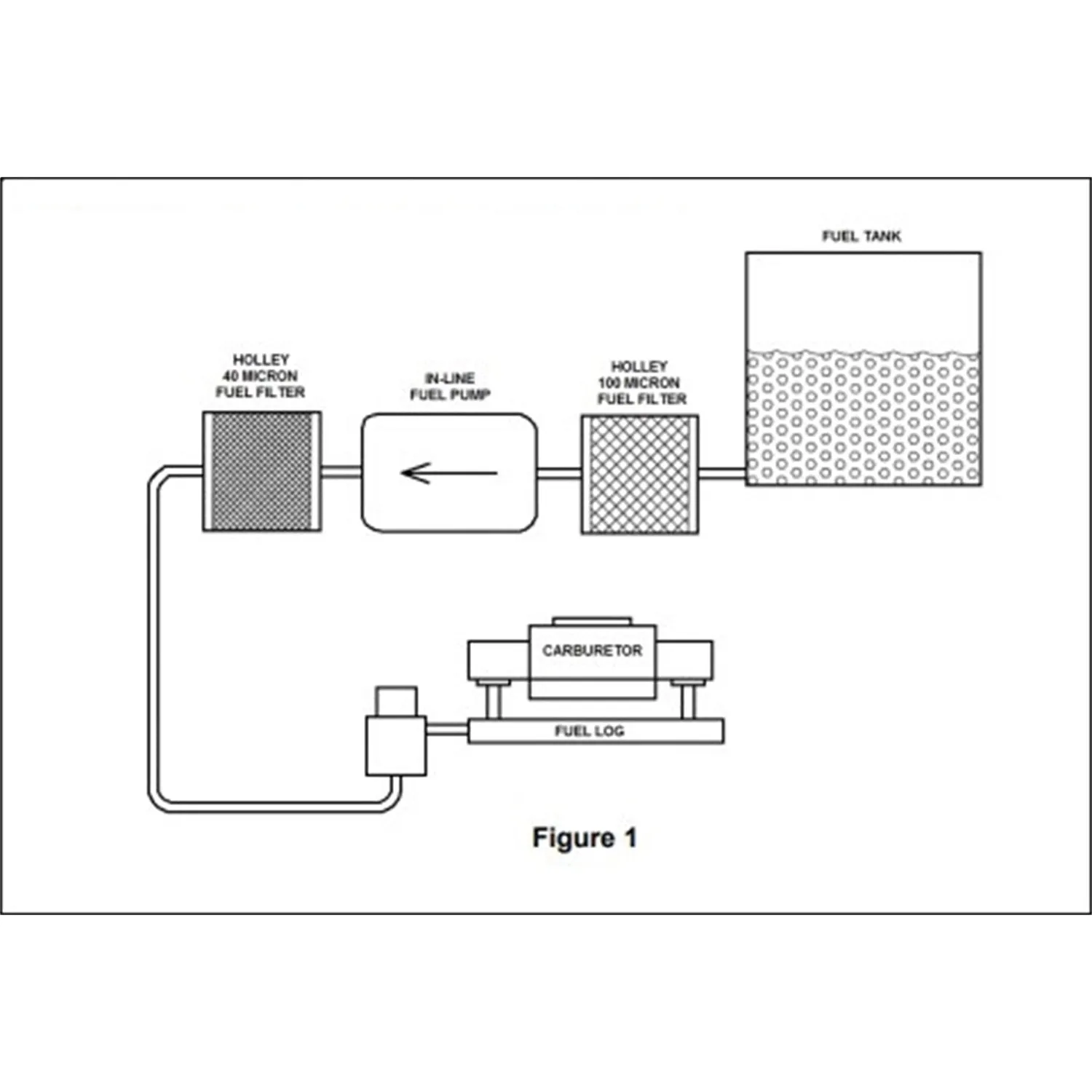

Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended. These should be used with 12 volt systems only.

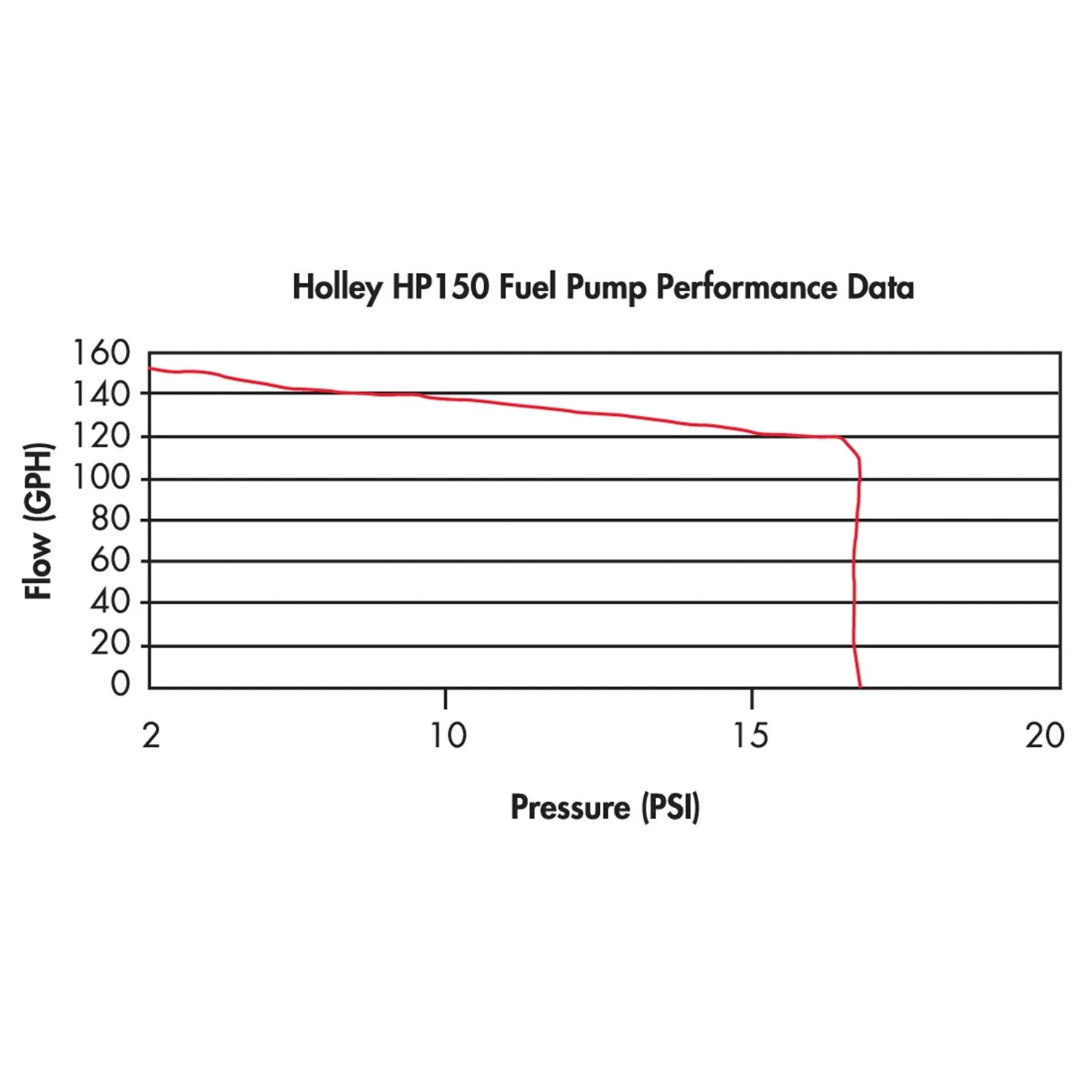

Flows 150 GPH free flow

Flows 140 GPH at 7 psi

Powers engines from stock all the way up to 900 horsepower (Gasoline)

3/8" NPT inlet & outlet fittings

Not designed for use on aircraft of any type.

Black mil-spec nickel PTFE hard anodized billet base

Show quality chrome 12v motor

Profiled black powdercoated mounting bracket

Laser engraved Holley logo & inlet/outlet markings

Less noise than traditional vane pumps

6 1/4" tall

Compatible with gasoline or alcohol

Relay kit P/N 12-753 recommended

Product Description:

Fuel Pump

HP Series

Electric

In-Line

140 gph at 7 psi

3/8 in NPT Female Inlet / Outlet

Regulator

Black / Chrome

Gas / Alcohol

Sold Individually
